Abstract analog device. More...

#include <grmcdorman/device/AbstractAnalog.h>

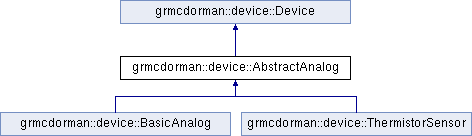

Inheritance diagram for grmcdorman::device::AbstractAnalog:

Public Member Functions
	AbstractAnalog (const __FlashStringHelper device_name, const __FlashStringHelper device_identifier, float defaultScale=1.0f, float defaultOffset=0.0f, bool invert=false)
	Construct a new Basic Analog object. More...

void	setup () override
	Setup the device. More...

void	loop () override
	Main loop. More...

bool	publish (DynamicJsonDocument &json) const override
	Publish the value and attributes. More...

float	get_last_reading () const
	Last computed reading. More...

float	raw_value () const
	Last raw value (no scale or offset applied). More...

float	get_current_average () const
	Get the last average reading. More...

DynamicJsonDocument	as_json () const override
	Get the values, as a JSON document. More...

Public Member Functions inherited from grmcdorman::device::Device
	Device (const __FlashStringHelper device_name, const __FlashStringHelper device_identifier)
	Construct a new Device object. More...

virtual	~Device ()
	Destroy the Device object.

const __FlashStringHelper *	name () const
	Get the device name; used for UI names and IDs. More...

virtual const __FlashStringHelper *	identifier () const
	Get the device identifier. More...

virtual void	set_defaults ()
	Set defaults, if necessary. More...

virtual void	set_devices (const std::vector< Device * > &list)
	For devices that support it, add devices to manage. More...

const definition_list_t &	get_definitions () const
	Get the definitions list. More...

const ::grmcdorman::SettingInterface::settings_list_t &	get_settings () const
	Get the settings list. More...

bool	is_enabled () const
	Get whether this device is enabled. More...

void	set_enabled (bool state)
	Set whether this device is enabled. More...

void	set (const String &setting, const String &value)
	If possible, set a setting's value. More...

String	get (const String &setting) const
	Get a setting value, as a string. More...

virtual String	get_status () const
	Get a status report. More...

virtual bool	get_is_published () const
	Get whether the device readings have been published. More...

void	set_is_published ()
	Set the device as having published readings. More...

void	clear_is_published ()
	Set the device as not having published readings.

Protected Member Functions
virtual float	transform_raw_reading (int reading)=0
	Transform the raw reading into the reported value. More...

Protected Member Functions inherited from grmcdorman::device::Device
void	initialize (definition_list_t &&definition_list, ::grmcdorman::SettingInterface::settings_list_t &&setting_list)
	Initialize the definition and setting lists. More...

Protected Attributes
FloatSetting	scale
	Offset.

FloatSetting	offset
	Scaling.

ToggleSetting	invertReading
	Whether to invert the reading.

UnsignedIntegerSetting	readInterval
	How often to request a reading.

uint32_t	last_read_millis = 0
	Timestamp of last read.

Accumulator< float, 5 >	sensor_reading
	Reading.

Protected Attributes inherited from grmcdorman::device::Device
ToggleSetting	enabled
	Whether this device is enabled.

Static Protected Attributes
constexpr static uint32_t	statusReadInterval = (30 / 5) * 1000
	Default read interval. Chosen such that there should be 5 readings per 30 seconds.

Static Protected Attributes inherited from grmcdorman::device::Device
static const int	settingsMap [6]
	The set of data lines usable for communication. More...

Additional Inherited Members
Public Types inherited from grmcdorman::device::Device
typedef std::vector< const Definition * >	definition_list_t
	The type containing a list of Definition objects.

Static Public Member Functions inherited from grmcdorman::device::Device
static void	set_system_identifiers (const __FlashStringHelper *firmware_name_value, const String &system_identifier_value=String())
	Set the system identifier values. More...

static const __FlashStringHelper *	get_firmware_name ()
	Get the firmware prefix. More...

static const String &	get_system_identifier ()
	Get the system identifier. More...

Static Public Attributes inherited from grmcdorman::device::Device
static constexpr int	D0 = 16
	D0 is GPIO16, HIGH at boot, not suitable for most usages.

static constexpr int	D1 = 5
	D1 is GPIO5; often used as SCL.

static constexpr int	D2 = 4
	D2 is GPIO4; often used as SDA.

static constexpr int	D3 = 0
	D3 is GPIO0; pulled up; connected to FLASH button; not for input.

static constexpr int	D4 = 2
	D4 is GPIO2; pulled up; HIGH at boot; on-board LED; not for input.

static constexpr int	D5 = 14
	D5 is GPIO14; SPI (SCLK)

static constexpr int	D6 = 12
	D6 is GPIO12; SPI (MISO)

static constexpr int	D7 = 13
	D7 is GPIO13; SPI (MOSI)

static constexpr int	D8 = 15
	D8 is GPIO15; pulled to GND; SPI (CS); not recommended.

static const ExclusiveOptionSetting::names_list_t	data_line_names { FPSTR("D1"), FPSTR("D2"), FPSTR("D3"), FPSTR("D5"), FPSTR("D6"), FPSTR("D7")}
	Names for each configurable data line; see `settingsMap`.

Static Protected Member Functions inherited from grmcdorman::device::Device
static int	index_to_dataline (int index)
	Convert a data line index to a ESP data line. More...

static int	dataline_to_index (int dataLine)
	Convert a data line to an index. More...

Detailed Description

Abstract analog device.

This device reads A0; the value can be transformed by a scale and an offset before reporting. The value can also be inverted (i.e. 1/value).

This device doesn't provide full services; it's intended to be derived in other classes that can transform the raw value into meaningful output.

Constructor & Destructor Documentation

◆ AbstractAnalog()

grmcdorman::device::AbstractAnalog::AbstractAnalog	(	const __FlashStringHelper *	device_name,
		const __FlashStringHelper *	device_identifier,
		float	defaultScale = `1.0f`,
		float	defaultOffset = `0.0f`,
		bool	invert = `false`
	)

explicit

Construct a new Basic Analog object.

Parameters

device_name	Device name.
device_identifier	Device identifier.
defaultScale	Default scaling value.
defaultOffset	Default offset value.
invert	If true, invert the reading before applying scale and offset.

Member Function Documentation

◆ as_json()

DynamicJsonDocument grmcdorman::device::AbstractAnalog::as_json ( ) const

overridevirtual

Get the values, as a JSON document.

The structure is identical to the document created inside publish.

Returns: DynamicJsonDocument

Reimplemented from grmcdorman::device::Device.

Reimplemented in grmcdorman::device::ThermistorSensor.

◆ get_current_average()

float grmcdorman::device::AbstractAnalog::get_current_average ( ) const

inline

Get the last average reading.

Only valid after a call to reset_accumulation that returns true.

Returns: float

◆ get_last_reading()

float grmcdorman::device::AbstractAnalog::get_last_reading ( ) const

inline

Last computed reading.

Returns: float

◆ loop()

void grmcdorman::device::AbstractAnalog::loop ( )

overridevirtual

Main loop.

This is called in the main application loop. This should avoid blocking as doing so will prevent the other devices from running.

An exception is a "device" which requires user interaction, e.g. WiFi association, before the rest of the system can run.

Implements grmcdorman::device::Device.

◆ publish()

bool grmcdorman::device::AbstractAnalog::publish ( DynamicJsonDocument & json ) const

overridevirtual

Publish the value and attributes.

The values and attributes for all sensors, i.e. all items listed in the Description instances, should added to the supplied JSON object. If the value is not available, or this device does not publish, return false.

The value, or values, and attributes, if any, are to be added as a single node to the json parameter. This includes the case for multiple sensors.

Parameters

[in,out] json JSON to receive the device values and attributes.

Returns: true if a value to be published was added; false otherwise.

Reimplemented from grmcdorman::device::Device.

◆ raw_value()

float grmcdorman::device::AbstractAnalog::raw_value ( ) const

inline

Last raw value (no scale or offset applied).

Returns: float

◆ setup()

void grmcdorman::device::AbstractAnalog::setup ( )

overridevirtual

Setup the device.

Call once when the system boots. This should perform device-specific setup, if the device is enabled, as well as preparing UI settings (notably info settings) for communication.

This must be called after initial values are loaded.

Implements grmcdorman::device::Device.

◆ transform_raw_reading()

virtual float grmcdorman::device::AbstractAnalog::transform_raw_reading ( int reading )

protectedpure virtual

Transform the raw reading into the reported value.

This can, for example, transform the raw A0 value into volts, or transform a thermistor value in to degrees Celcius.

Do not apply the scaling, offset, and invert values in this method; they will be automatically applied on the returned value.

Parameters

reading The raw reading.

Returns: float The transformed reading.

Implemented in grmcdorman::device::BasicAnalog, and grmcdorman::device::ThermistorSensor.

The documentation for this class was generated from the following files:

grmcdorman/device/AbstractAnalog.h
AbstractAnalog.cpp
