This class supports the SHT31-D sensor as a device. More...
#include <grmcdorman/device/Sht31Sensor.h>

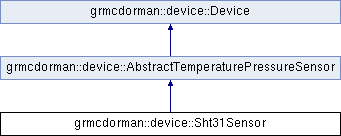

Inheritance diagram for grmcdorman::device::Sht31Sensor:
Public Member Functions | |
| void | setup () override |
| Setup the device. More... | |
| void | loop () override |
| Main loop. More... | |
| virtual String | get_status () const |
| Get a status report. More... | |
 Public Member Functions inherited from grmcdorman::device::AbstractTemperaturePressureSensor | |
| AbstractTemperaturePressureSensor (const __FlashStringHelper *device_name, const __FlashStringHelper *device_identifier) | |
| Construct a new Abstract Temperature Pressure Sensor object. More... | |
| DynamicJsonDocument | as_json () const override |
| Get the values, as a JSON document. More... | |
| bool | publish (DynamicJsonDocument &json) const |
| Publish the value and attributes. More... | |
| float | get_temperature () const |
| Get the last temperature reading. More... | |
| float | get_humidity () const |
| Get the last humidity reading. More... | |
| Public Member Functions inherited from grmcdorman::device::Device | |
| Device (const __FlashStringHelper *device_name, const __FlashStringHelper *device_identifier) | |
| Construct a new Device object. More... | |
| virtual | ~Device () |
| Destroy the Device object. | |
| const __FlashStringHelper * | name () const |
| Get the device name; used for UI names and IDs. More... | |
| virtual const __FlashStringHelper * | identifier () const |
| Get the device identifier. More... | |
| virtual void | set_defaults () |
| Set defaults, if necessary. More... | |
| virtual void | set_devices (const std::vector< Device * > &list) |
| For devices that support it, add devices to manage. More... | |
| const definition_list_t & | get_definitions () const |
| Get the definitions list. More... | |
| const ::grmcdorman::SettingInterface::settings_list_t & | get_settings () const |
| Get the settings list. More... | |
| bool | is_enabled () const |
| Get whether this device is enabled. More... | |
| void | set_enabled (bool state) |
| Set whether this device is enabled. More... | |
| void | set (const String &setting, const String &value) |
| If possible, set a setting's value. More... | |
| String | get (const String &setting) const |
| Get a setting value, as a string. More... | |
| virtual bool | get_is_published () const |
| Get whether the device readings have been published. More... | |
| void | set_is_published () |
| Set the device as having published readings. More... | |
| void | clear_is_published () |
| Set the device as not having published readings. | |
Additional Inherited Members | |
| Public Types inherited from grmcdorman::device::Device | |
| typedef std::vector< const Definition * > | definition_list_t |
| The type containing a list of Definition objects. | |
| Static Public Member Functions inherited from grmcdorman::device::Device | |
| static void | set_system_identifiers (const __FlashStringHelper *firmware_name_value, const String &system_identifier_value=String()) |
| Set the system identifier values. More... | |
| static const __FlashStringHelper * | get_firmware_name () |
| Get the firmware prefix. More... | |
| static const String & | get_system_identifier () |
| Get the system identifier. More... | |
| Static Public Attributes inherited from grmcdorman::device::AbstractTemperaturePressureSensor | |
| static constexpr int | INVALID_READING = -273 |
| The invalid reading value. | |
| Static Public Attributes inherited from grmcdorman::device::Device | |
| static constexpr int | D0 = 16 |
| D0 is GPIO16, HIGH at boot, not suitable for most usages. | |
| static constexpr int | D1 = 5 |
| D1 is GPIO5; often used as SCL. | |
| static constexpr int | D2 = 4 |
| D2 is GPIO4; often used as SDA. | |
| static constexpr int | D3 = 0 |
| D3 is GPIO0; pulled up; connected to FLASH button; not for input. | |
| static constexpr int | D4 = 2 |
| D4 is GPIO2; pulled up; HIGH at boot; on-board LED; not for input. | |
| static constexpr int | D5 = 14 |
| D5 is GPIO14; SPI (SCLK) | |
| static constexpr int | D6 = 12 |
| D6 is GPIO12; SPI (MISO) | |
| static constexpr int | D7 = 13 |
| D7 is GPIO13; SPI (MOSI) | |
| static constexpr int | D8 = 15 |
| D8 is GPIO15; pulled to GND; SPI (CS); not recommended. | |
| static const ExclusiveOptionSetting::names_list_t | data_line_names { FPSTR("D1"), FPSTR("D2"), FPSTR("D3"), FPSTR("D5"), FPSTR("D6"), FPSTR("D7")} |
Names for each configurable data line; see settingsMap. | |
| Protected Member Functions inherited from grmcdorman::device::Device | |
| void | initialize (definition_list_t &&definition_list, ::grmcdorman::SettingInterface::settings_list_t &&setting_list) |
| Initialize the definition and setting lists. More... | |
| Static Protected Member Functions inherited from grmcdorman::device::Device | |
| static int | index_to_dataline (int index) |
| Convert a data line index to a ESP data line. More... | |
| static int | dataline_to_index (int dataLine) |
| Convert a data line to an index. More... | |
| Protected Attributes inherited from grmcdorman::device::AbstractTemperaturePressureSensor | |
| Accumulator< float, 5, INVALID_READING > | temperature |
| The temperature accumulator. | |
| Accumulator< float, 5, INVALID_READING > | humidity |
| The humidity accumulator. | |
| Protected Attributes inherited from grmcdorman::device::Device | |
| ToggleSetting | enabled |
| Whether this device is enabled. | |
| Static Protected Attributes inherited from grmcdorman::device::Device | |
| static const int | settingsMap [6] |
| The set of data lines usable for communication. More... | |
Detailed Description
This class supports the SHT31-D sensor as a device.
The device provides humidity and temperature. Readings are published as the average of all readings made since the last publish.
Member Function Documentation
◆ get_status()
|
virtual |
Get a status report.
This is also used for the device_status info message, with the exception of various disabled states.
When the SHT31Sensor is disabled or nonoperational, this returns an empty string.
- Returns
- String containing status report.
Reimplemented from grmcdorman::device::Device.
◆ loop()
|
overridevirtual |
Main loop.
This is called in the main application loop. This should avoid blocking as doing so will prevent the other devices from running.
An exception is a "device" which requires user interaction, e.g. WiFi association, before the rest of the system can run.
Implements grmcdorman::device::Device.
◆ setup()
|
overridevirtual |
Setup the device.
Call once when the system boots. This should perform device-specific setup, if the device is enabled, as well as preparing UI settings (notably info settings) for communication.
This must be called after initial values are loaded.
Implements grmcdorman::device::Device.
The documentation for this class was generated from the following files:
- grmcdorman/device/Sht31Sensor.h
- Sht31Sensor.cpp
